TP500 MF ROTARY UNION - 1/2" to 2"

Positioning rotary union for your standard applications

Ergonomic design
Economical rotating joint
Indicative DN standards - Other DN sizes on request

Strengths and specificities

  • A simple and efficient design for "light-duty" and stress-free applications
  • It is short and lightweight, and easily integrated

Operating conditions

Air, water, oils, gas, vacuum and others
NPS 1/2" to 2" - Others on request
Orientation and/or slow non-continuous rotation
Up to 12 bar
Up to 90°C - Depending on the nature of the seal, higher temperatures available on request: contact us

MAIN SECTORS OF ACTIVITY

  • Food industry
  • Chemistry - Healt
  • Petrochemicals
  • Robotics - Electronics

TECHNICAL INFORMATION

  • 1 passage
  • Stainless steel
  • Male/Female thread cylindrical BSP gas pipe (BSPP) - Others on request
  • Rotation guided by a row of ball bearings
  • Seal - material adapted to your operating conditions - contact us

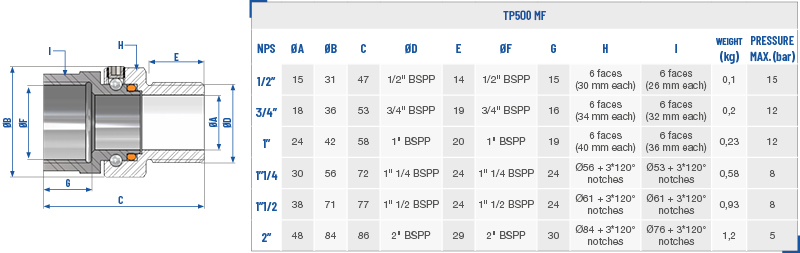

Dimensions (IN MM)

Rotary union TP500, Pacquet

EXAMPLES OF APPLICATIONS

  • Hose connection and orientation with accessories
  • Gun handling
  • Pneumatic and robotic applications

Ready-to-use, factory-fitted, maintenance-free swivel fitting (supplied assembled and lubricated) - Maintenance kits available on request - Other possible configurations: contact us - The operating conditions are interdependent: do not combine pressure, speed and temperature - Cycle time: contact us - Terms of use available on our site
