TP1100 MF ROTARY UNION - 1/4" to 2"

Multipurpose heavy-duty rotary union that is suitable for many applications

Easy assembly
No maintenance
Good resistance to mechanical loads

Strengths and specificities

  • Excellent quality/price ratio: heavy-duty reliable swivel fitting at a controlled cost
  • One of Pacquet's flagship products for a number of years now
  • Suitable for food processing - albeit with retention zones

Operating conditions

Air, water, oils, gas, vacuum and others
NPS 1/4" to 2" - Others on request
Orientation and/or slow non-continuous rotation
Up to 40 bar
Up to 180°C - Depending on the nature of the seal and the grease used: contact us

MAIN SECTORS OF ACTIVITY

  • Food industry
  • Energy - Environment - Wastewater treatment
  • Chemistry - Health
  • Petrochemicals
  • Foundry

TECHNICAL INFORMATION

  • 1 passage
  • Martensitic stainless steel (food)
  • Male/Female thread cylindrical BSP gas pipe (BSPP) - Others on request
  • Rotation guided by a double row of ball bearings
  • Main seal provided by the seal - Material adapted to your operating conditions: contact us

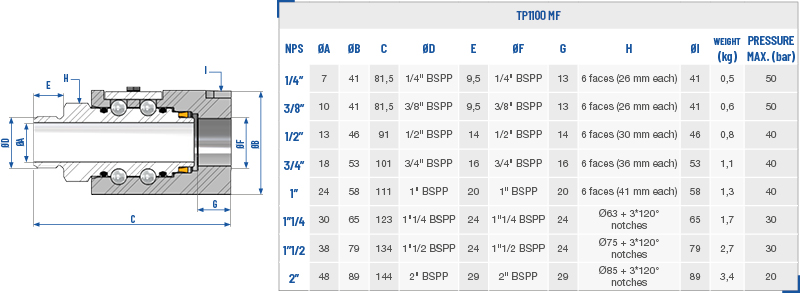

dimensions (IN MM)

Rotary union, TP1100 MF, Pacquet

EXAMPLES OF APPLICATIONS

  • Hose orientation
  • Low-pressure reels bearing external mechanical loads
  • Upstream installation of a washing or filling rod
  • Gun mounting if pressure is high

Rotating joint delivered with maintenance manual and assembly instructions (excluding welding instructions) - Maintenance kits available on request - Other possible configurations: contact us - The operating conditions are interdependent: do not combine pressure, speed and temperature - Cycle time: contact us - Terms of use available on our site
