TP2000 MF ROTARY UNION - 1/4" to 1"

90° angle connection high pressure rotary union

Swivel fitting designed for your high-pressure applications
Ergonomic
No maintenance required

Strengths and specificities

  • Your Pacquet item reference as standard in a 90° angled version
  • Compact and ideal for processes with space constraints
  • Lubricated during assembly and self-lubricated by bearings

Operating conditions

Air, water, oils - Others on request
NPS 1/4" to 1" - Others on request
Orientation and/or slow non-continuous rotation
Up to 350 bar as standard - Higher pressures available depending on use: contact us
Up to 200°C - Depending on the nature of the seal: contact us

raccords tournants haute pression : MAIN SECTORS OF ACTIVITY

  • Marine environment
  • Robotics - Electronics
  • Civil engineering - Construction
  • Transport - Logistics

TECHNICAL INFORMATION

  • 1 passage
  • Stainless steel
  • Male/Female thread cylindrical BSP gas pipe (BSPP) at a 90° angle - Others on request
  • Rotation guided by self-lubricating bearings
  • Main seal provided by the seal - Material adapted to your operating conditions: contact us

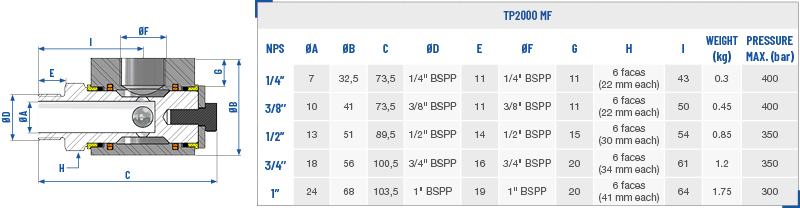

dimensions (IN MM)

Rotary union TP2000 MF, Pacquet

EXAMPLES OF APPLICATIONS

  • Reels
  • Connection of high-pressure hoses
  • Cleaning the inside of road tankers
  • Truck hydraulic system
  • Agricultural and forestry machinery

Ready-to-use, factory-fitted, maintenance-free swivel fitting (supplied assembled and lubricated) - Maintenance kits available on request - Other possible configurations: contact us- The operating conditions are interdependent: do not combine pressure, speed and temperature - Cycle time: contact us - Terms of use available on our site
