TP1100 SMS ROTARY UNION - SMS25 TO SMS104

Weld-on rotary union for your food applications

Made entirely out of stainless steel
Swivel fitting without retention zone
For food-related as well as pharmaceutical and cosmetic applications

Strengths and specificities

3.1B material certificate for the stainless steel used in the manufacturing

FDA food-grade certificate, 1935/2004 EC for the seals

SMS standard dimensions as standard (DIN, MACON, CLAMP, others also available on request)

Operating conditions

Fluids for food, pharmaceutical and cosmetic applications
SMS25 to SMS104 - Others on request
Orientation and/or slow non-continuous rotation
Up to 10 bar
Up to 180°C - Depending on the nature of the seal and the grease used: contact us

MAIN SECTORS OF ACTIVITY

  • Food industry, food fluids
  • Chemistry - Health, fine chemicals

TECHNICAL INFORMATION

  • 1 passage
  • Stainless steel
  • Weld-on rotating joint
  • Rotation guided by a double row of ball bearings
  • Main seal provided by an FDA standard certified seal, 1935/2004 EC

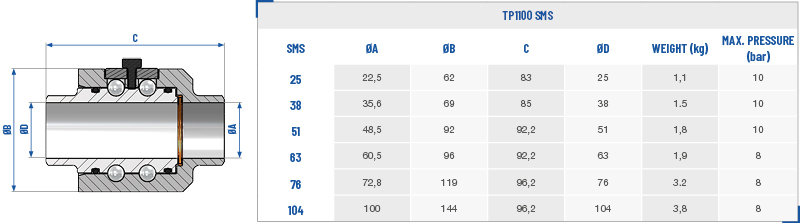

Dimensions (in mm)

Rotary union TP1100 SMS, food applications, Pacquet

EXAMPLES OF APPLICATIONS

  • Clean-in-place (CIP)
  • Transfer of cosmetic products
  • Manufacture of perfumes
  • Manufacture of human and animal foodstuffs
  • Dairy industry

Rotating joint delivered with maintenance manual and assembly instructions (excluding welding instructions) - Equipped with a lubricator: lubrication intervals to be defined according to your operating conditions - Maintenance kits available on request - Other possible configurations: contact us - The operating conditions are interdependent: do not combine pressure, speed and temperature - Cycle time: contact us- Terms of use available on our site
