TP1100 RC ROTARY UNION - 1" to 8"

Adjustable weld-on rotary union flat flange connection

Ergonomic rotating joint (short)
Ideal for processes with space constraints
Indicative standard NPS - Other NPS sizes on request

Strengths and specificities

  • The advantages of our adjustable swivel joints applied to your installation: we construct your flat flanged version from our weld-on version !
  • Assembled with PN10/16 flanges as standard

Operating conditions

Air, water, oils, gas, vacuum and others
NPS 1" to 8" - Others on request
Orientation and/or slow non-continuous rotation
Up to 16 bar depending on the flanges - Higher pressures available on request - contact us
Up to 180°C depending on the nature of the seal and the grease used - contact us

MAIN SECTORS OF ACTIVITY

  • Food industry
  • Energy - Environment - Wastewater treatment
  • Robotics - Electronics
  • Marine environment

TECHNICAL INFORMATION

  • 1 passage
  • Stainless steel - Steel with anti-corrosion coating
  • Connection by flat flanges
  • Rotation guided by a double row of ball bearings
  • Main seal provided by the seal - Material adapted to your operating conditions: contact us

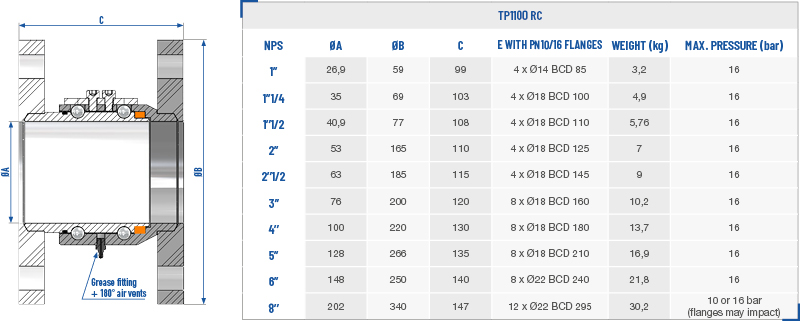

dimensions (in mm)

Rotary union TP1100 RC, Pacquet

EXAMPLES OF APPLICATIONS

  • Sludge unloading arm in wastewater treatment plants
  • Treatment of waste
  • Loading arms and hoses

Rotating joint delivered with maintenance manual and assembly instructions (excluding welding instructions) - Maintenance processes : contact us  - Kits maintenance disponibles sur demande  - Maintenance kits available on request - Other possible configurations: contact us- The operating conditions are interdependent: do not combine pressure, speed and temperature- Cycle time: contact us- Terms of use available on our site
